Biochemical Analyzer

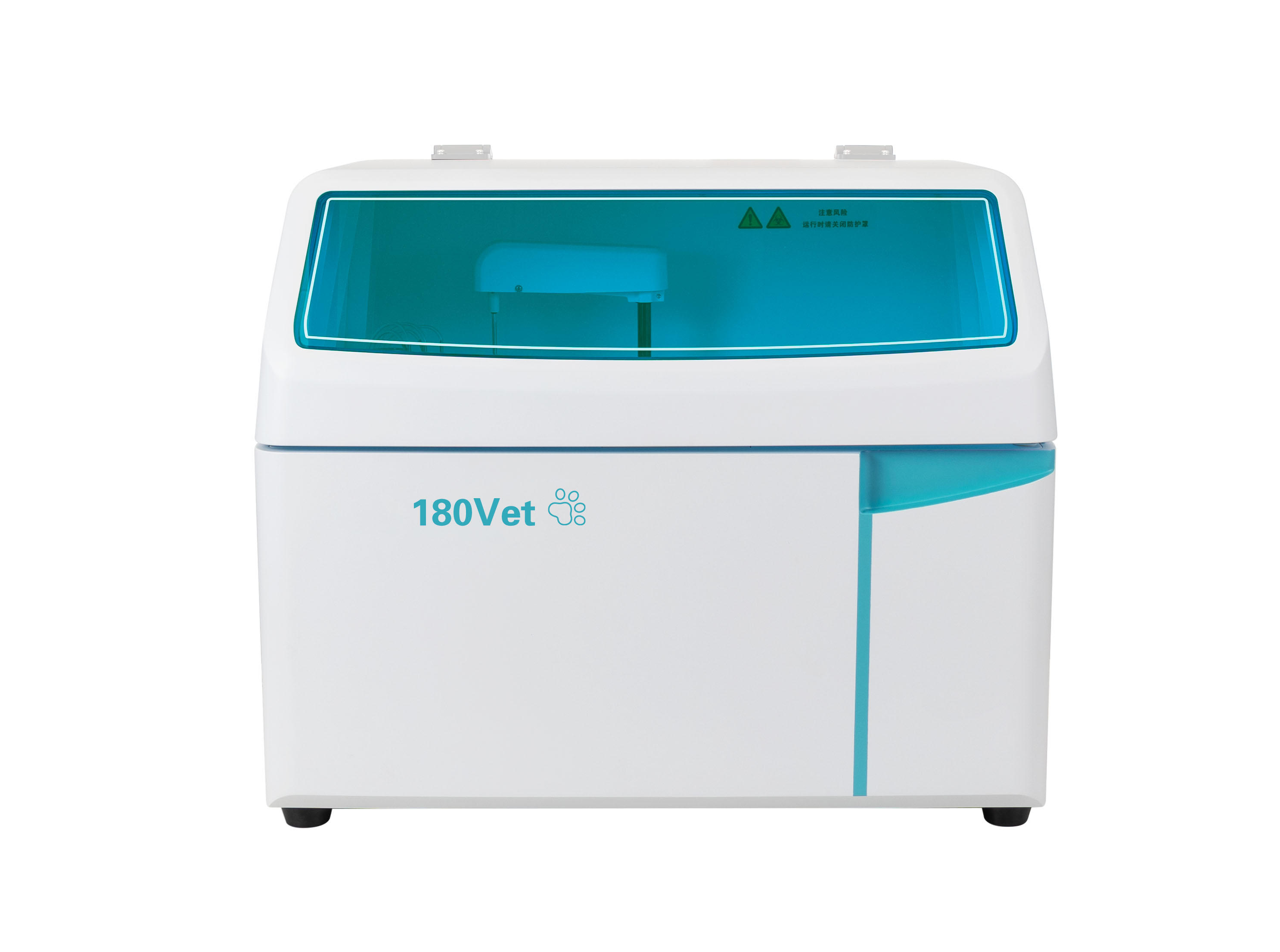

MT-180Vet Fully Automatic Portable Biochemical Analyzer
An all-in-one biochemical analyzer integrating biochemistry, cardiac markers, and electrolyte testing. Requires only 100μL blood with 12-minute rapid results. Ideal for clinics and field testing.
Veterinary-specific biochemistry system: Designed specifically for animal samples, compatible with serum biochemistry of cats, dogs, and more.
User-friendly software interface: Fully Chinese interface with intuitive touchscreen operation and quick test selection.
Upgraded sampling system: Automatic dilution, liquid level detection, anti-contamination needle with automatic internal/external cleaning.
Reliable temperature control: Independent constant temperature modules for precise and stable results.
Biochemical Analyzer
L I S
Product Introduction
| Parameter | Specification |
| Analysis Method | 全自动比色法 / Fully automated photometric analysis |
| Throughput | 120 tests/hour |
| Reaction Volume | 180~500 µL |
| Wavelengths | 8 fixed wavelengths (340, 380, 405, 450, 510, 546, 578, 630 nm) |
| Light Source | 长寿命卤素灯 / Long-life halogen lamp |
| Photometric Accuracy | ≤ ±1% |
| Sample Volume | 最小2 µL |
| Sample Positions | 20位样本位 / 20 sample positions |
| Reagent Positions | 40位试剂位 / 40 reagent positions |
| Reaction Cuvette | 可重复使用石英比色杯 / Reusable quartz cuvettes |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Interface | USB, RS232, Ethernet |
| Operating System | Windows系统 / Windows-based system |
| Dimensions | 850 mm × 530 mm × 550 mm |
| Weight | 35 kg |
